Camera | |
Image Sensor | 6MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8”) |
CPU | Dual-Core ARM Cortex-A7@900MHz |
Lens | 3.6 mm Fixed Lens @F1.6, (2.8 mm Optional) |
Resolution | 3200*1800 (6MP) |
Available Warm Light Range | Smart Light Technology30 m Warm Light Technology (2 pcs Warm Light) 40~50 m Smart IR SMD Technology (1pcs IR SMD) |
D/N Filter | IR cut filter with auto switch |
Min Illumination | Color: 0.001 lux(AGC on) – 0.0 Lux(IR on) |
Angle of View | H-FOV: 89°-(108°), V-FOV: 46°-(58°), D-FOV: 106°-(128°) |
Night Vision | Dual Light Technology |
Picture Adjust | |
Picture Function | 120dB WDR/DWDR, 2D/3D DNR, BLC, HLC, ROI, Defog |
Shutter Speed | Manual (1/3 ~ 1/100.000), Auto |
Image Parameter Control | Off, On, Timing (Adjust 0 ~ 255) |
D/N Control | Timing, Auto, Color on, Color off |
Image Parameter | Saturation, Brightness, Contrast, Sharpness, Hue |
S/N | > 56dB |
Video/Audio | |
Video Compression | H.264+(Ultra H.264), H.265+ (Ultra H.265), MJPEG |
Audio Compression | G.711A, G.711U |
Frame Rate (60Hz) | 30fps@ 6MP(3200*1800), 30fps@ 4MP, 30fps@ 2MP |
Transmission Stream | Triple Stream (Video Bit Rate:11 Kbps~16 Mbps) |
Network | |
Protocols | TCP/IP(V4, V6), ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, SNMP (V1, V2, V3), UDP, NAT, Multicast, RTMP |
Compatibility | Onvif Ver2.6, Profile S, G, T, CGI, SDK, AP |
Streaming Method | Unicast, Multicast |
Web Viewer | IE, Edge, Firefox, Chrome |
Smart Device | IOS, Android Phone & Tablet |
Function | |
Recording | FTP, NVR, CMS, VMS, NAS, SD Card, ANR |
Record Type | Manual, Motion Detection, Smart Detection, Schedule |
Alarm Triggers | All Intelligent Function |
Event Action | Email, PTZ, Snapshot, Recording, Buzzer, Pop up, Show Message, Smart Light |
Event | Motion Detection, Video Shelter |
Intelligent Function | Line Crossing, Area Intrusion, Region Entrance, Region Exiting, Fast Moving, Loitering Detection, Blurred Detection, Scene Change Detection, Audio exception Detection, Face Detection |
Interface | |
Network | 1 RJ45 (10M / 100M) Ethernet Port |
Audio | Internal Mic, Audio Out, Audio in |
Alarm | Alarm Out, Alarm In |
CVBS | N/A |
Power | PoE LAN, DC In |
reset Button | Yes (Optional) |
Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support) |
Guarantee | |
Product Guarantee | 5 Years Gold Guarantee |
MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
Certificate | EN, CN, FCC, CFR |

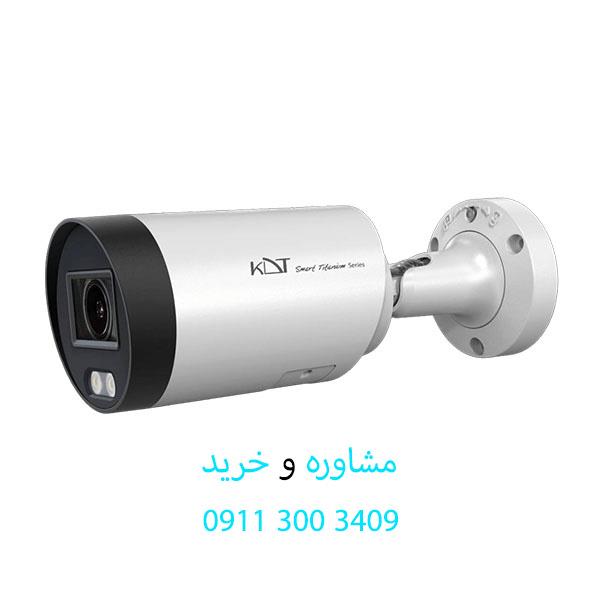

دوربین مدار بسته بولت با طراحی جدید و منحصر به فرد در سری های بولت با لنز 2.8 میلی متری فیکس میتواند محدوده مناسب و با کیفیتی را برای شما استفاده کنندگان عزیز پوشش دهد.
